PostgreSQL

The PostgreSQL integration backs up PostgreSQL databases into a Kloset store and restores them. It supports logical dumps, logical dumps authenticated with an AWS IAM token, and physical base backups of the whole cluster.

The integration includes two connectors:

The integration supports three protocols, each suited for different requirements:

Requirements

• For postgres:// and postgres+aws://, the PostgreSQL client tools in $PATH on the machine running Plakar, typically provided by the postgresql-client package:
  • pg_dump, pg_dumpall: for backup
  • pg_restore, psql: for restore and connectivity checks
• For postgres+bin://, pg_basebackup in $PATH (same postgresql-client package, or postgresql on macOS via Homebrew).
• For the directory dump format, Linux with /dev/fuse and fusermount3 (Debian package fuse3).
• Database-side requirements are listed under each protocol.

Typical use cases

• Scheduled logical backups of application databases with cross-version portability.
• RDS or Aurora backups authenticated through IAM without static credentials.
• Full-cluster physical snapshots for file-level disaster recovery.
• Selective database or schema restores from a full-cluster dump.

Installation

The PostgreSQL integration is distributed as a Plakar package.

$ plakar pkg add postgresql

$ plakar pkg show

$ plakar pkg build postgresql

$ plakar pkg add -allow-unsigned ./postgresql_v1.0.0_darwin_arm64.ptar

$ plakar pkg show

To list, upgrade, or remove the package, see the managing packages guide.

Snapshot manifest

Every snapshot produced by this integration, with any protocol, contains a /manifest.json record written before the backup data. It captures the cluster state at the moment the backup was initiated and includes the following:

The relations array covers tables, partitioned tables, foreign tables, views, materialized views, and sequences. Each entry includes schema, name, owner, columns, constraints, indexes, partitioning metadata, row estimates, and vacuum/analyze timestamps.

Metadata collection is best-effort. If a query fails, the affected field is omitted and the backup continues normally.

1. postgres protocol

The postgres protocol connects to a running PostgreSQL server and produces a logical dump with pg_dump and pg_dumpall. A logical dump is a portable, SQL-level representation of the data.

Every snapshot follows the same layout:

• /00000-globals.sql: roles and tablespaces for the whole cluster (pg_dumpall --globals-only).
• /00001-<dbname>.dump, /00002-<dbname>.dump, …: one pg_dump -Fc custom-format file per database, numbered alphabetically. With format=directory, each database is a /00001-<dbname>/ directory instead. See Dump formats.

When a single database is specified, only that database is dumped alongside the globals file. When no database is specified, every database with datallowconn = true is dumped, excluding template0. The snapshot also contains the snapshot manifest.

Restore dispatches on file name and extension. .dump files are fed to pg_restore, and 00000-globals.sql is fed to psql automatically.

Pros

• Portable across PostgreSQL major versions. You can dump on PG 15, restore on PG 16.
• Selectively back up individual databases or the whole cluster.
• Supports selective table or schema restore with pg_restore -t.
• No server downtime required.

Cons

• Requires a live, accessible PostgreSQL server for both backup and restore.
• Does not capture low-level objects (e.g. unlogged table contents, certain system catalog details).
• Restore time scales with data volume.

The backup user should be a superuser so that pg_dumpall can include role passwords from pg_authid. On managed services such as Amazon RDS, the administrative user is a restricted superuser and the integration cannot read role passwords from pg_authid. In that case it automatically passes --no-role-passwords to pg_dumpall and logs a warning. The dump is otherwise complete, but restored roles have no password set.

A backup of all databases connects to the postgres database to list them, so the backup user needs CONNECT on it. Some managed services, such as Clever Cloud, do not grant it. Back up a single database there.

Database names that start with a dash, or contain = or whitespace, are refused and the backup or restore fails. To back up the rest of a cluster that contains one, list it in exclude_databases.

Backup flow

flowchart LR
subgraph Source["PostgreSQL Server"]
  DB["Databases"]
end

subgraph Plakar["Plakar"]
  Connector["pg_dump / pg_dumpall"]
  Transform["Encrypt & deduplicate"]

  Connector --> Transform
end

Store["Kloset Store"]

DB --> Connector
Transform --> Store

Restore flow

flowchart LR
Store["Kloset Store"]

subgraph Plakar["Plakar"]
  Transform["Decrypt & reconstruct"]
  Connector["pg_restore / psql"]

  Transform --> Connector
end

subgraph Destination["PostgreSQL Server"]
  DB["Databases"]
end

Store --> Transform
Connector --> DB

Dump formats

The format option selects how each database is dumped. Both formats apply to the postgres and postgres+aws protocols.

The default, custom, dumps each database with a single pg_dump -Fc process into one .dump file.

format=directory dumps each database with pg_dump -Fd, which writes one file per table and dumps several tables in parallel. On large databases this shortens backups considerably. Each file is streamed into the snapshot as it is written, so the dump uses no local disk. parallel_dumps sets the number of parallel jobs per database. Each job is a separate connection running a COPY on the server. It defaults to 4, or to Plakar’s concurrency when that is lower. A single table is always dumped by one job, so the largest table bounds how fast a database can be dumped.

The directory format needs Linux with /dev/fuse and fusermount3. The backup fails at startup when they are missing, or on any other platform. When Plakar runs in a container, the container needs access to /dev/fuse, the SYS_ADMIN capability, and an AppArmor profile that allows mounts.

$ plakar at /var/backups backup -cache no "@mypg"

To restore a directory-format snapshot, restore it to a local directory, or mount it with plakar mount, and run pg_restore -Fd on the database directory, such as 00001-myapp. When the roles do not exist on the target, apply 00000-globals.sql with psql first.

Excluding tables

exclude_tables and exclude_table_data leave large tables out of a logical backup. Both take a comma-separated list of pg_dump table patterns and apply them to every database dumped:

• exclude_tables leaves out the table entirely, definition and rows (pg_dump --exclude-table).
• exclude_table_data keeps the definition and leaves out the rows, so the table is restored empty (pg_dump --exclude-table-data).

A pattern without a schema only matches tables on the search_path. Use *.audit_log to match a table in every schema. Excluding a partitioned table does not exclude its partitions, which must be listed too. Both lists are recorded in the snapshot manifest.

Shared configuration

The following options apply to both source and destination connectors using the postgres protocol.

Source configuration

The following extra options are available to source connectors using the postgres protocol.

Destination configuration

The following extra options are available to destination connectors using the postgres protocol.

Example

Back up a single database, or all databases including roles and tablespaces:

# Back up a single database
$ plakar source add mypg postgres://postgres:secret@db.example.com/myapp
$ plakar at /var/backups backup "@mypg"

# Back up all databases (roles, tablespaces, and data)
$ plakar source add mypg postgres://postgres:secret@db.example.com/
$ plakar at /var/backups backup "@mypg"

# Dump each database with 8 parallel jobs, keeping audit_log empty
$ plakar source add mypg postgres://postgres:secret@db.example.com/myapp \
  format=directory parallel_dumps=8 exclude_table_data=public.audit_log
$ plakar at /var/backups backup "@mypg"

Restore with different destination settings:

# Restore into an existing database (database must already exist)
$ plakar destination add mypgdst postgres://postgres:secret@db.example.com/myapp
$ plakar at /var/backups restore -to "@mypgdst" <snapshot_id>

# Drop objects first, then restore (database must exist)
$ plakar destination add mypgdst postgres://postgres:secret@db.example.com/myapp \
  clean=true
$ plakar at /var/backups restore -to "@mypgdst" <snapshot_id>

# Drop and recreate the database entirely (safe for fresh or existing clusters)
$ plakar destination add mypgdst postgres://postgres:secret@db.example.com/ \
  recreate=true
$ plakar at /var/backups restore -to "@mypgdst" <snapshot_id>

# Restore a single database from a full backup
$ plakar destination add mypgdst postgres://postgres:secret@db.example.com/ \
  databases=myapp recreate=true
$ plakar at /var/backups restore -to "@mypgdst" <snapshot_id>

# Restore, skipping owner assignment (useful when roles differ on the target)
$ plakar destination add mypgdst postgres://postgres:secret@db.example.com/myapp \
  no_owner=true
$ plakar at /var/backups restore -to "@mypgdst" <snapshot_id>

2. postgres+aws protocol

The postgres+aws protocol performs the same logical backup as postgres, but authenticates with a short-lived IAM token rather than a static password. The token is generated automatically through the AWS SDK before pg_dump or pg_dumpall runs. The SDK uses its standard credential chain: environment variables, ~/.aws/credentials, EC2/ECS instance metadata, and so on. No password parameter is needed or accepted.

The backup output is identical to postgres:// and can be restored with the same postgres:// destination connector. The backup and restore flows are the same as for the postgres protocol.

AWS setup

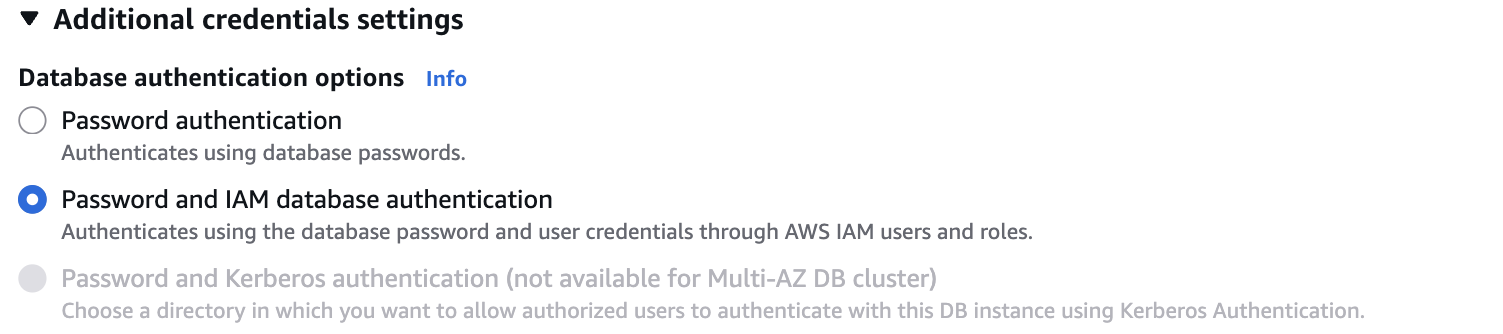

Enable IAM authentication on the RDS instance

Enable IAM database authentication on the RDS instance through the AWS console, CLI, or Terraform. It can be set at creation time or toggled on an existing instance.

Create an IAM policy with rds-db:connect

Attach the following policy to the IAM user or role that runs Plakar. See Managing IAM Roles, Users, and Access Keys for instructions on creating policies and attaching them to a user or role.

JSON

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": "rds-db:connect",
      "Resource": "arn:aws:rds-db:REGION:ACCOUNT_ID:dbuser:DB_RESOURCE_ID/DB_USER"
    }
  ]
}

• REGION: e.g. eu-west-3
• ACCOUNT_ID: your 12-digit AWS account ID
• DB_RESOURCE_ID: the RDS instance resource ID (e.g. db-ABCDEFGHIJKL1234), found in the RDS console under Configuration
• DB_USER: the PostgreSQL username Plakar connects as

Create the PostgreSQL user with IAM login

Connect to the database as a superuser and run:

SQL

CREATE USER myuser WITH LOGIN;
GRANT rds_iam TO myuser;

The user must not have a password set. Authentication is handled entirely by the IAM token.

Providing credentials

export AWS_ACCESS_KEY_ID=AKIAIOSFODNN7EXAMPLE
export AWS_SECRET_ACCESS_KEY=wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY
export AWS_REGION=eu-west-3

$ plakar source add myrds \
  postgres+aws://myuser@mydb.cluster-xyz.eu-west-3.rds.amazonaws.com/myapp \
  region=eu-west-3 ssl_mode=require
$ plakar at /var/backups backup "@myrds"

export AWS_SESSION_TOKEN=AQoDYXdzEJr...

# ~/.aws/credentials
[default]
aws_access_key_id     = AKIAIOSFODNN7EXAMPLE
aws_secret_access_key = wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY

# ~/.aws/config
[default]
region = eu-west-3

export AWS_PROFILE=myprofile
$ plakar at /var/backups backup "@myrds"

$ plakar source add myrds \
  postgres+aws://myuser@mydb.cluster-xyz.eu-west-3.rds.amazonaws.com/myapp \
  region=eu-west-3 ssl_mode=require
$ plakar at /var/backups backup "@myrds"

Shared configuration

The following options apply to both source and destination connectors using the postgres+aws protocol.

Source configuration

The following extra options are available to source connectors using the postgres+aws protocol.

Destination configuration

The postgres+aws destination connector supports the same options as the postgres destination connector, minus password, plus region. An IAM token is generated automatically and used as the connection password.

Example

Back up a single RDS database, or all databases on an RDS instance:

# Back up a single RDS database
$ plakar source add myrds \
  postgres+aws://myuser@mydb.cluster-xyz.us-east-1.rds.amazonaws.com/myapp \
  region=us-east-1 ssl_mode=require
$ plakar at /var/backups backup "@myrds"

# Back up all databases on an RDS instance
$ plakar source add myrds \
  postgres+aws://myuser@mydb.cluster-xyz.us-east-1.rds.amazonaws.com/ \
  region=us-east-1 ssl_mode=require
$ plakar at /var/backups backup "@myrds"

Restore to RDS:

# Restore into an existing database on RDS
$ plakar destination add myrds \
  postgres+aws://myuser@mydb.cluster-xyz.us-east-1.rds.amazonaws.com/myapp \
  region=us-east-1 ssl_mode=require
$ plakar at /var/backups restore -to "@myrds" <snapshot_id>

# Drop and recreate the database entirely
$ plakar destination add myrds \
  postgres+aws://myuser@mydb.cluster-xyz.us-east-1.rds.amazonaws.com/ \
  region=us-east-1 ssl_mode=require recreate=true
$ plakar at /var/backups restore -to "@myrds" <snapshot_id>

# Restore, skipping owner assignment
$ plakar destination add myrds \
  postgres+aws://myuser@mydb.cluster-xyz.us-east-1.rds.amazonaws.com/myapp \
  region=us-east-1 ssl_mode=require no_owner=true
$ plakar at /var/backups restore -to "@myrds" <snapshot_id>

3. postgres+bin protocol

The postgres+bin protocol runs pg_basebackup to stream a tar archive of the entire PostgreSQL data directory (PGDATA) directly from the server’s replication interface. Each file inside the tar is stored as an individual record in the snapshot, preserving paths, permissions, and timestamps.

Because the backup operates at the file level, it captures the entire cluster: all databases, configuration files, and the WAL segments required for a consistent recovery. No subpath can be specified, since pg_basebackup always backs up the whole cluster. The snapshot also contains the snapshot manifest.

Pros

• Fast backup and restore regardless of data volume, because it is a file copy, not a query.
• Captures everything in a single operation: all databases, configuration, global objects, and WAL.
• The restored cluster can be started directly with any PostgreSQL binary of the same major version. No running server is needed at restore time.

Cons

• Version-locked. The backup must be restored with the same PostgreSQL major version.
• Cannot selectively restore a single database or table.
• Requires a replication-capable user (or superuser) and wal_level >= replica on the server.
• The PostgreSQL server must be stopped before the data directory is replaced with the restored files.

The PostgreSQL server must have:

• wal_level = replica (or higher) in postgresql.conf
• A user with the REPLICATION privilege (or a superuser)
• pg_hba.conf allowing a replication connection from the backup host

Backup flow

flowchart LR
subgraph Source["PostgreSQL Server"]
  PGDATA["PGDATA (all databases)"]
end

subgraph Plakar["Plakar"]
  Connector["pg_basebackup
 (replication stream)"]
  Transform["Encrypt & deduplicate"]

  Connector --> Transform
end

Store["Kloset Store"]

PGDATA --> Connector
Transform --> Store

Source configuration

The postgres+bin protocol has a source connector only.

Example

# Back up the entire cluster
$ plakar source add mypg postgres+bin://replicator:secret@db.example.com
$ plakar at /var/backups backup "@mypg"

Restoring a physical backup

There is no dedicated destination connector for postgres+bin://. The snapshot contains plain files, so any file-restore connector can write them back to disk. The resulting directory is a valid PostgreSQL data directory that can be started directly.

# Restore the data directory locally
$ plakar at /var/backups restore -to ./pgdata <snapshot_id>

# Start PostgreSQL against the restored data directory
$ docker run --rm \
  -v "$PWD/pgdata:/var/lib/postgresql/data" \
  postgres:<postgres_version>

# Restore to a remote host via SFTP
$ plakar at /var/backups restore -to sftp://user@host/var/lib/postgresql/data <snapshot_id>
# then on the remote host:
$ pg_ctl -D /var/lib/postgresql/data start

Replace <postgres_version> with the same major version that was running when the backup was taken (e.g. 17).

Limitations and scope

pg_dump compression is disabled by default. With compress=false, Plakar’s own compression and deduplication operate on the raw data stream. A pre-compressed dump is an incompressible stream, which reduces both compression efficiency and cross-snapshot deduplication. Depending on network bandwidth and store backend, enabling pg_dump compression may be more efficient for very large databases. This trade-off warrants further benchmarking across different workloads.

See also

• Logical backups with pg_dump
• Physical backups with pg_basebackup
• PostgreSQL integration GitHub
• PostgreSQL Documentation
• pg_dump Reference
• pg_basebackup Reference
• Plakar Architecture (Kloset Engine)
